Edifier MR5 Tri-Amped Studio Monitor for Modern Audio Workflows
The Edifier MR5 is a three-way powered studio monitor designed for music production, video editing, content creation, critical listening, and general home audio use. It sits at the upper end of Edifier’s MR monitor range and combines a tri-amped architecture with digital signal processing, multiple room-compensation controls, and both professional and consumer-oriented connectivity. The system uses a 5-inch woofer, 3.75-inch midrange driver, and 1-inch silk-dome tweeter, with each frequency range handled through dedicated amplification. Edifier specifies a 46Hz to 40kHz frequency response and 110W RMS total output, giving the MR5 a configuration intended to cover both detailed near-field monitoring and broader listening environments. The product is available in black and white versions in markets where both finishes are offered, while its relatively substantial cabinet size places it closer to a full studio monitor than a compact desktop speaker.
Edifier MR5 Three-Way Acoustic Architecture
The central design characteristic of the Edifier MR5 is its three-way acoustic architecture, which separates bass, midrange, and treble reproduction across dedicated drivers. The 5-inch woofer handles lower frequencies, while the 3.75-inch midrange driver focuses on the central portion of the audio spectrum and the 1-inch silk-dome tweeter handles higher frequencies. Edifier pairs these drivers with a tri-amped active crossover and digital signal processing rather than relying on a conventional passive crossover arrangement. The published crossover points are 155Hz between bass and midrange and 2,600Hz between midrange and treble. This arrangement allows each amplification section to be matched with its respective driver, with the published RMS allocation being 30W plus 30W for bass, 15W plus 15W for midrange, and 10W plus 10W for treble across the stereo system.
Edifier MR5 Frequency Response and Monitoring
The MR5 is specified with a 46Hz to 40kHz frequency response, a range that extends well beyond the commonly used audible spectrum while providing coverage across low, mid, and high frequencies. Edifier positions the monitor around neutral and transparent reproduction rather than a strongly emphasized consumer-oriented sound signature, making the frequency response relevant to applications where users need to hear changes in recordings, edits, or mixes. The monitor also incorporates a dimpled tweeter waveguide designed to broaden the listening area and maintain more consistent high-frequency performance away from the central listening position. This wider sweet spot can be useful when a workstation is shared or when the listener moves around a desk rather than remaining precisely centered between the speakers. Edifier rates the system at up to 101dB SPL at one meter, while the signal-to-noise ratio is specified at 85dB or higher.
Edifier MR5 Connections for Studio and Home Systems
Connectivity is one of the more flexible aspects of the Edifier MR5 because the monitor supports both balanced professional inputs and conventional consumer connections. The active speaker provides balanced XLR and balanced quarter-inch TRS inputs for equipment such as audio interfaces, mixers, and other studio hardware. RCA and 3.5mm AUX connections accommodate computers, playback devices, and other conventional sources, while a dedicated headphone output provides a way to connect headphones without requiring a separate output device. Wireless playback is handled through Bluetooth 6.0, with support for LDAC and SBC codecs. Edifier also specifies Bluetooth multipoint functionality, allowing two devices to remain connected and making it easier to move between sources. For compatible Android devices, LDAC enables wireless transmission at up to 990kbps and 24-bit/96kHz according to the manufacturer’s specifications.
Edifier MR5 Room Adjustment and Digital Controls
Room placement can significantly affect the way a monitor sounds, particularly when speakers are positioned close to walls, on desks, or in rooms with strong reflections. The Edifier MR5 addresses these variables through several acoustic-compensation controls and digital processing options. Its rear-panel controls include high- and low-frequency adjustment, with Edifier specifying a range of plus or minus 6dB for frequencies above 10kHz through the high control and around 125Hz through the low control. Additional settings include Low Cut-Off, Acoustic Space, and Desktop Control. These functions are intended to compensate for different room conditions and placement effects, including increased bass or midrange response caused by positioning near boundaries and reflections from desktop surfaces. The EDIFIER ConneX mobile application extends this adjustment system by providing playback controls, sound-effect selection, customizable settings, room-compensation controls, and access to product information.
Edifier MR5 Design, Dimensions, and Placement
The physical construction of the MR5 reflects its role as a full-sized studio monitor rather than a small computer speaker. The active speaker measures 159mm wide, 264mm high, and 280mm deep, while the passive speaker has the same width and height with a depth of 257mm. The complete system has a published net weight of 10.38kg, so a stable desk, monitor stand, shelf, or dedicated speaker stand is appropriate for installation. The three-driver arrangement requires more cabinet volume than compact two-way desktop systems, and the dimensions should therefore be considered when planning a workstation or studio layout. Edifier offers the MR5 in black and white versions on its U.S. product listing, providing an option for different workspace designs. Because the monitor is designed for near-field and mid-field operation, placement with the tweeters appropriately aligned to the listening position remains important even with its wider sweet spot.

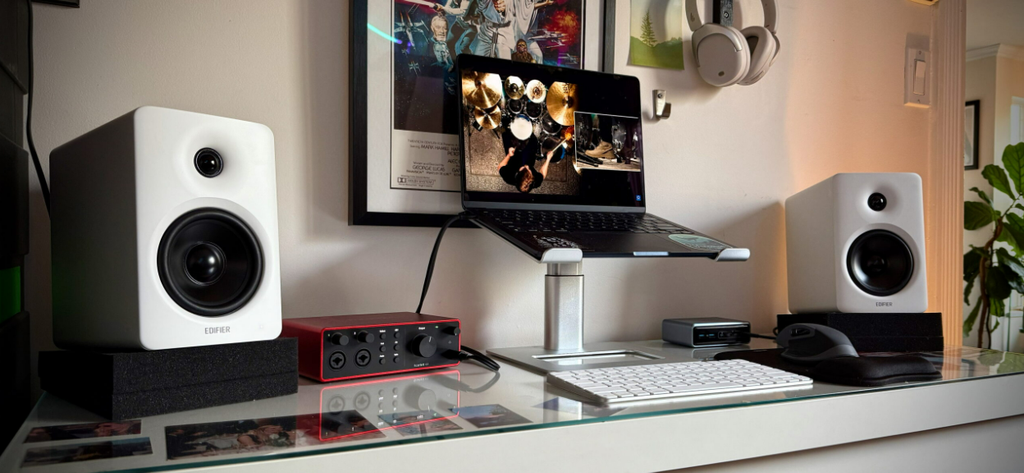

Edifier MR5 Applications for Creators and Listeners
The Edifier MR5 is designed to serve several audio applications without being limited to professional recording environments. Edifier identifies music production, video editing, and everyday listening among its intended uses, while the balanced XLR and TRS inputs make the system compatible with typical studio interfaces and mixers. For creators working from home, the monitor can function as the primary speaker system for editing audio, producing music, preparing video projects, or checking recorded material. Its three-way configuration can also make it suitable for listeners who want a more detailed speaker system for music playback without moving into a larger passive Hi-Fi setup. Bluetooth support adds convenience for casual listening, while the wired inputs allow the same pair to remain connected to more specialized equipment.
Edifier MR5 Pricing and Current Availability
Pricing for the Edifier MR5 varies by market, retailer, taxes, and regional distribution. On Edifier’s U.S. official store, the current listed price is $349.99, with black and white versions shown as product options. The same official store currently places the MR5 alongside the MR3 and MR4 in the company’s MR Studio Monitor collection, illustrating its position as the higher-powered three-way model within that range. Regional pricing can differ; for example, Edifier’s Australian store lists the MR5 at A$399, demonstrating why local pricing should be checked before purchase rather than converted directly from another market. Availability can also change according to inventory and regional product releases. Edifier continues to feature the MR5 in its 2026 studio and Hi-Fi lineup, including its current IFA 2026 presentation, where the company highlights the broader MR monitor family as part of its professional and creator-oriented audio products. The Edifier MR5 continues to occupy a distinct position as the three-way monitor in Edifier’s expanding 2026 studio-audio portfolio. The company has continued developing its MR range, including the compact MR3 and other monitoring products, while introducing additional studio-focused models such as the MR5 and newer MR-series offerings.
